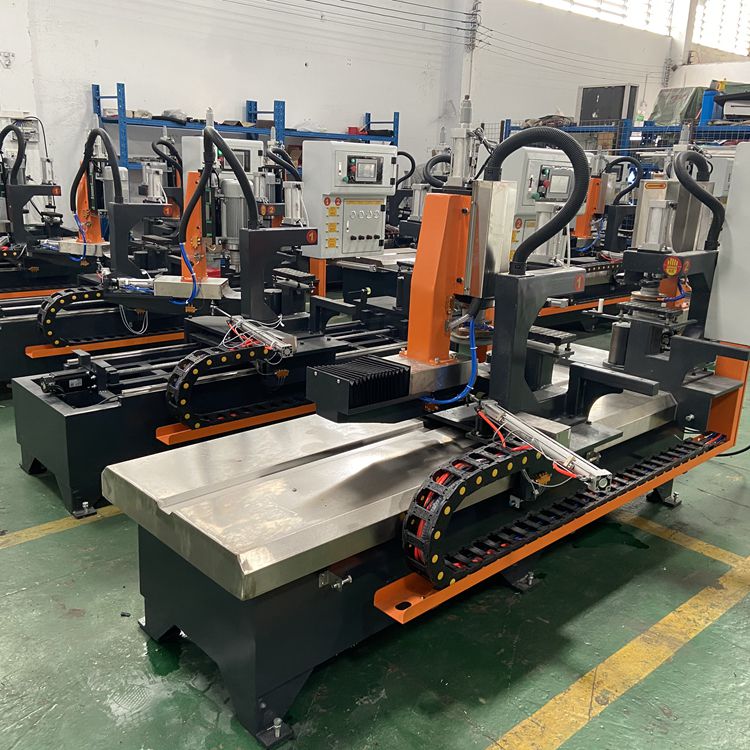

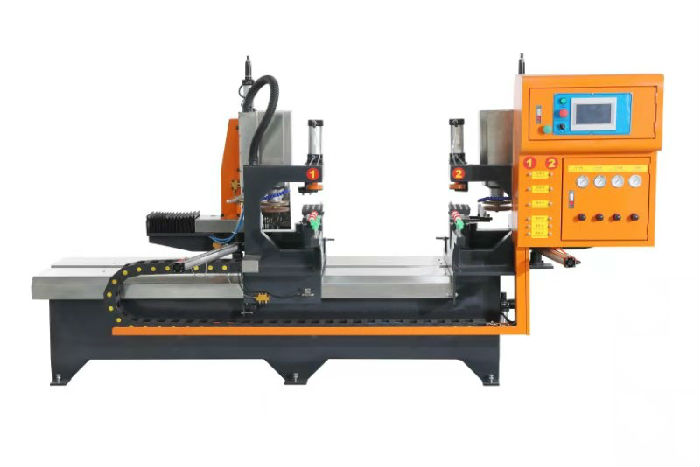

YHD-1600 plate automatic chamfering machine
1. Product introduction:

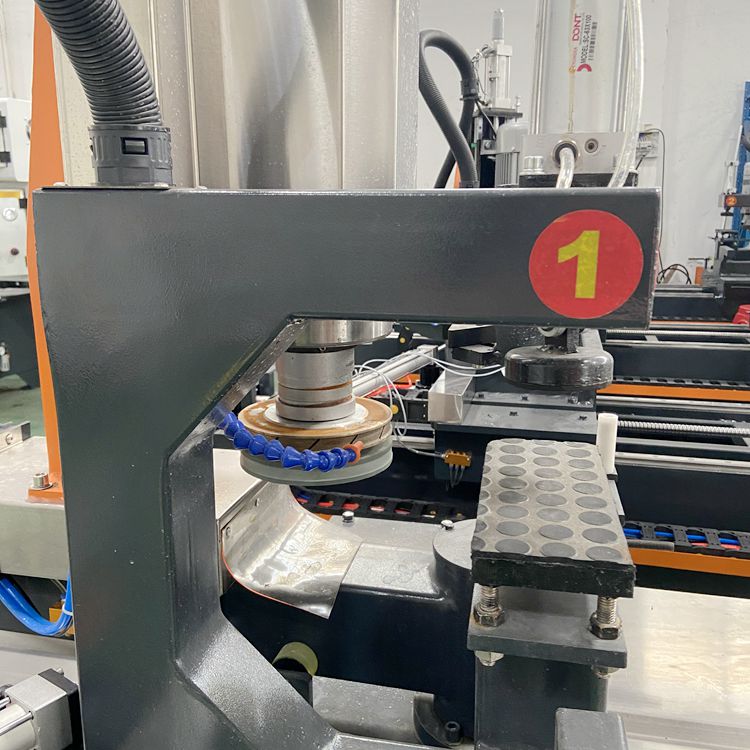

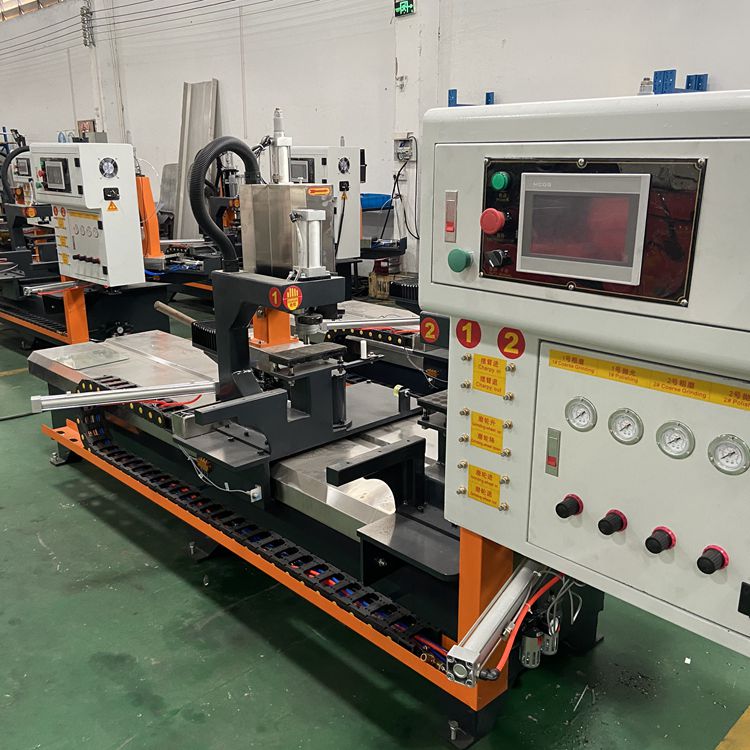

YHD1600 rock plate chamfering machine is suitable for square rock plate for round edge, duck tip edge, square edge, beveled edge for fillet grinding, polishing.The machine base adopts integral welding structure, annealing treatment, to ensure the machine has high strength and long-term precision stability;It uses the cylinder to press the glass on the table surface, and automatically grinding and polishing the glass Angle by rotating the grinding motor arm. The grinding times and polishing times can be set on the touch screen according to customer needs. The rotating speed of the grinding motor arm and the feeding speed can be adjusted by the adjusting knob on the electric cabinet.The machine also adopts automatic opening and closing system to open and close the grinding motor, convenient adjustment;The customer only needs to measure the width of the rock slab and set it on the touch screen to adjust automatically.The machine adopts PLC control circuit, easy to operate, easy to upgrade the system;Equipped with automatic refueling system, the guide screw lubrication, without manual refueling;Prolong the service life of machinery.
2. Technical parameters:
1/ Max glass width: 1600mm
2/ Minimum glass size: 350×350mm
3/R Angle: R5 ~ R60mm
4/ Glass thickness: 3-20mm
5/ Normal glass chamfering speed: 3 pieces /min
6/ table height: 870mm
7/ Total power of the machine: about 6KW
8/ Water source: tap water or factory circulating water.
9/ power supply: 380 volts (+ 5%-10%), center wire + ground wire, 50±2 Hz;
10/ weight: 1200KG
11/ Overall size: 3000×1400×1500mm
